Results:

Part Number	Manufacturer	Stock	Description	Inquiry

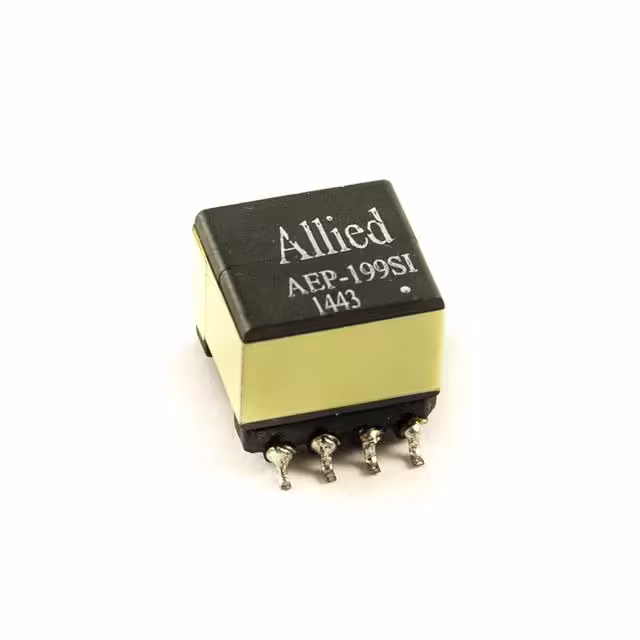

AEP-199SI	Allied Components International	6,115	20.4UH 8% EP10 SMD TRANSFORMER	Inquiry Now

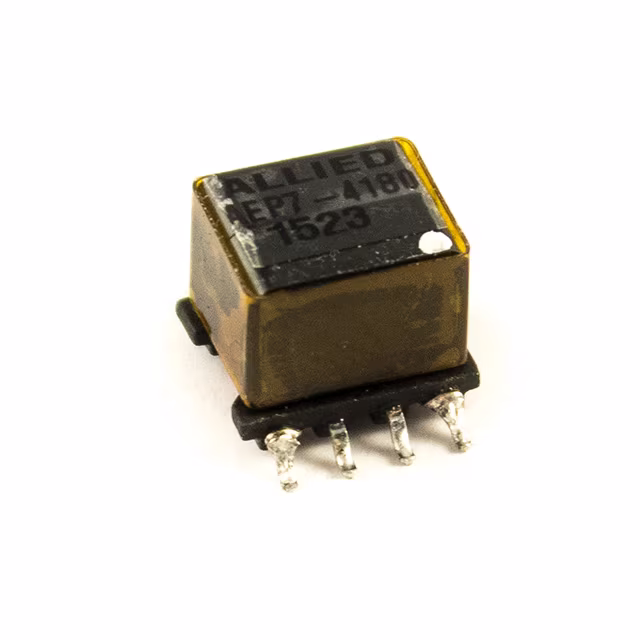

AEP7-4180	Allied Components International	7,832	EP7 POWER TRANSFORMER	Inquiry Now

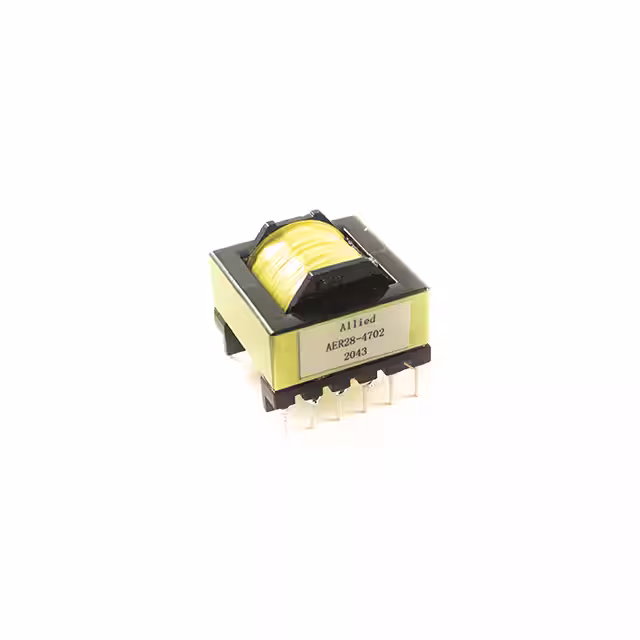

AER28-4702	Allied Components International	4,624	200UH, ER28 TRANSFORMER	Inquiry Now
AEL25V-4162	Allied Components International	3,796	1.3H 15% EL25 CORE THRU-HOLE	Inquiry Now

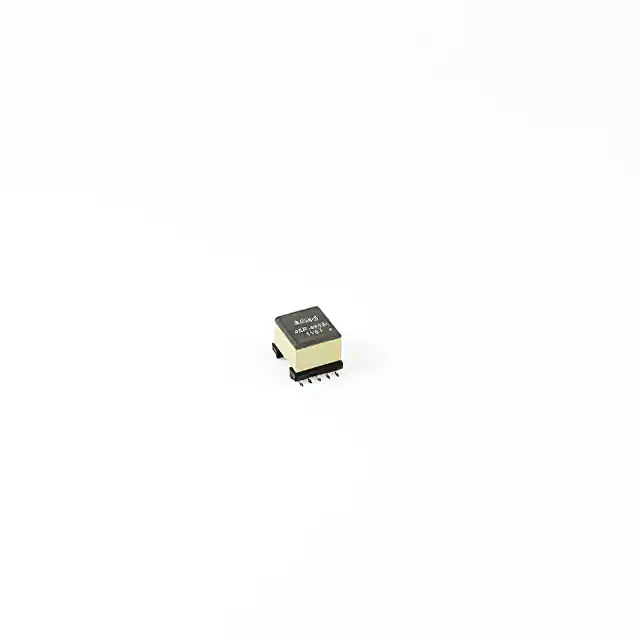

AEP-483SI	Allied Components International	5,032	37uH +/-10% EP Transformer	Inquiry Now

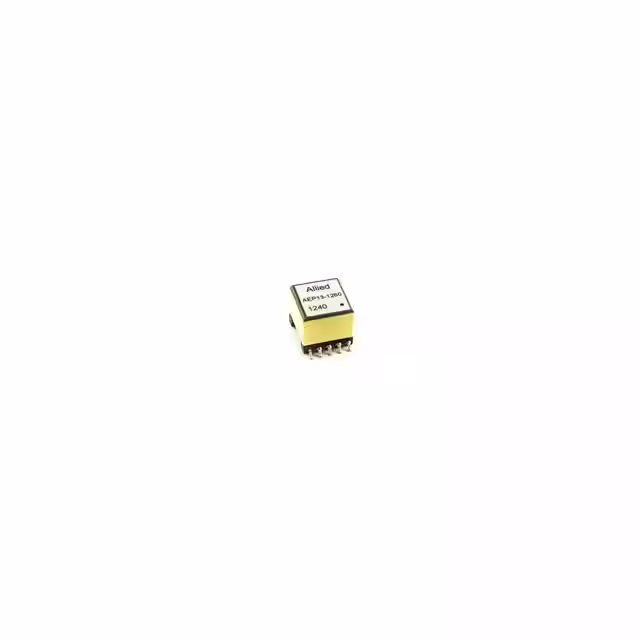

AEP13-1260	Allied Components International	8,316	77.4UH 10% EP13 SMD TRANSFORMER	Inquiry Now

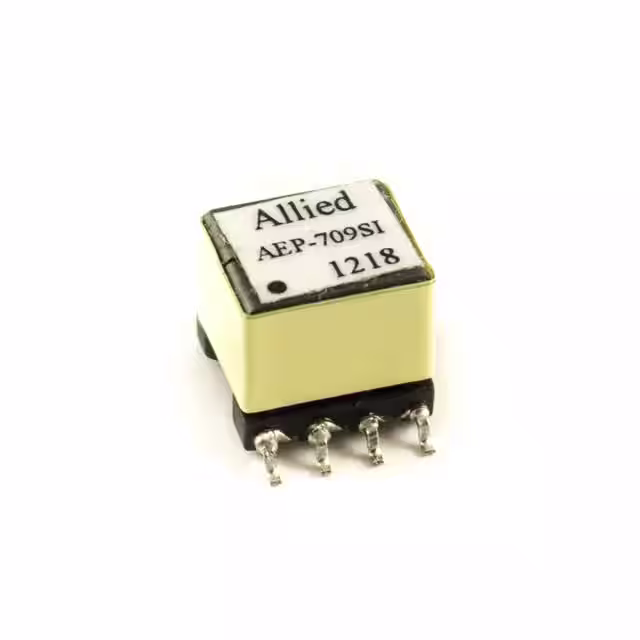

AEP-709SI	Allied Components International	6,481	2UH 10% EP7 8-PIN SMD TRANSF.	Inquiry Now

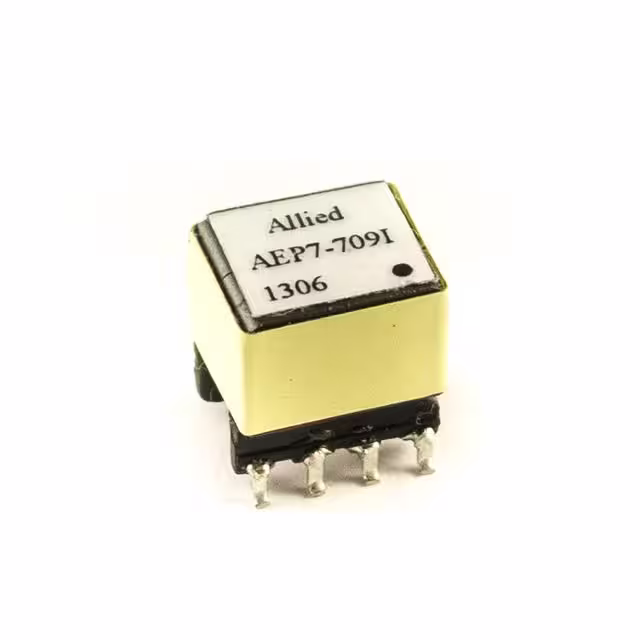

AEP7-709I	Allied Components International	7,461	400UH 10% EP7 8-PIN SMD TRANSF.	Inquiry Now
AEP13-4398	Allied Components International	7,862	40UH 10% EP13 SMD TRANSFORMER	Inquiry Now

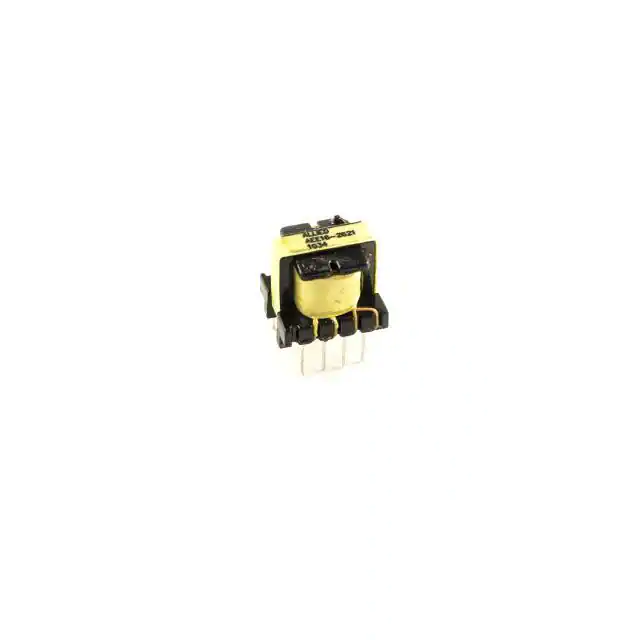

AEE16-2621	Allied Components International	12,203	1000uH 10% High Freq Transformer	Inquiry Now

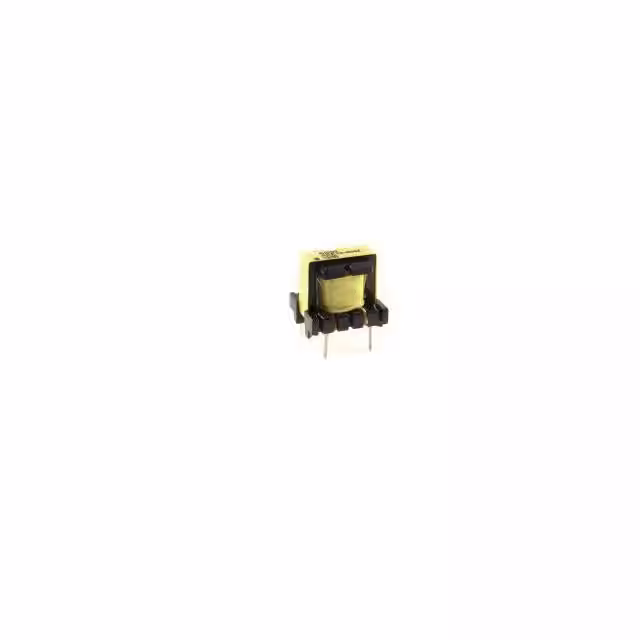

AEE16-4642	Allied Components International	5,264	1200UH10% (@60KHZ/1V) FLYBACK	Inquiry Now

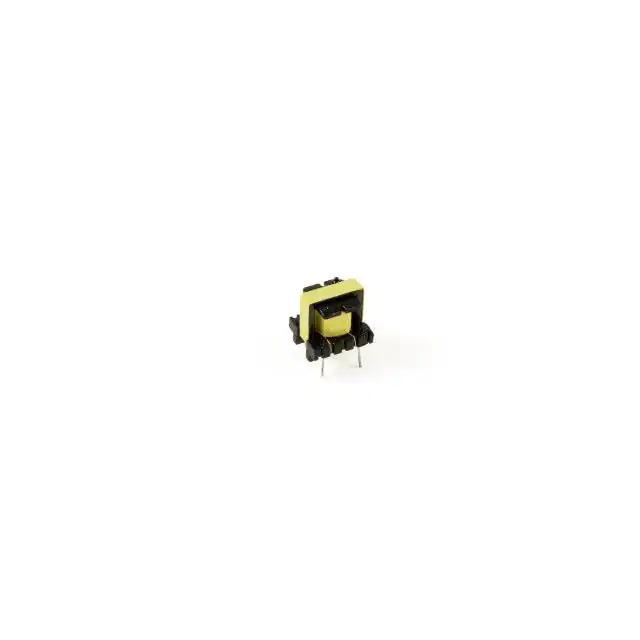

AEE16-2531	Allied Components International	7,935	4.5uH 12% High Freq Transformer	Inquiry Now

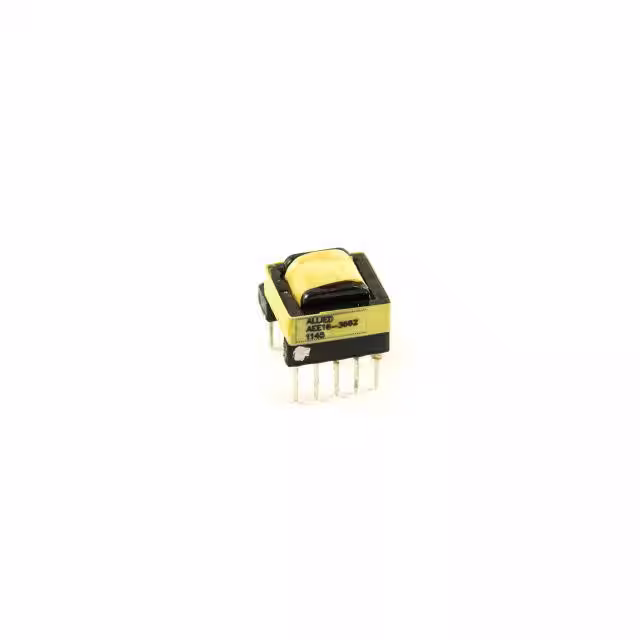

AEE16-3662	Allied Components International	8,883	3-phase 3.3V, 1.2A EE16 Trans.	Inquiry Now

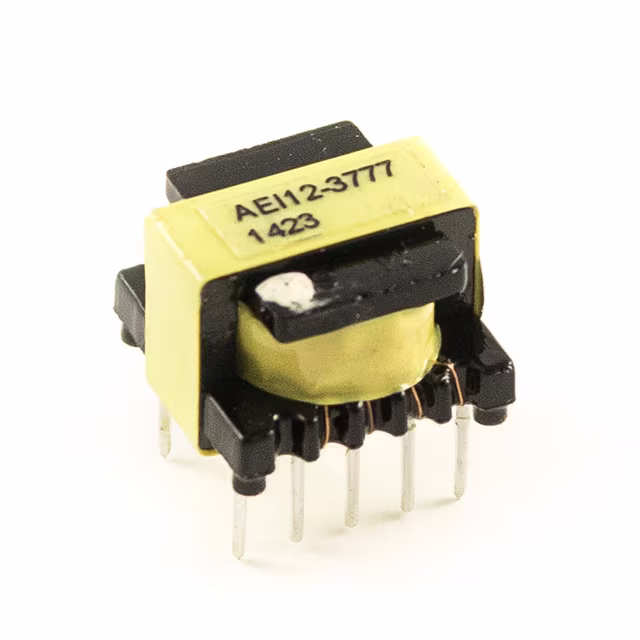

AEI12-3777	Allied Components International	5,610	EI12 TRANSFORMER	Inquiry Now

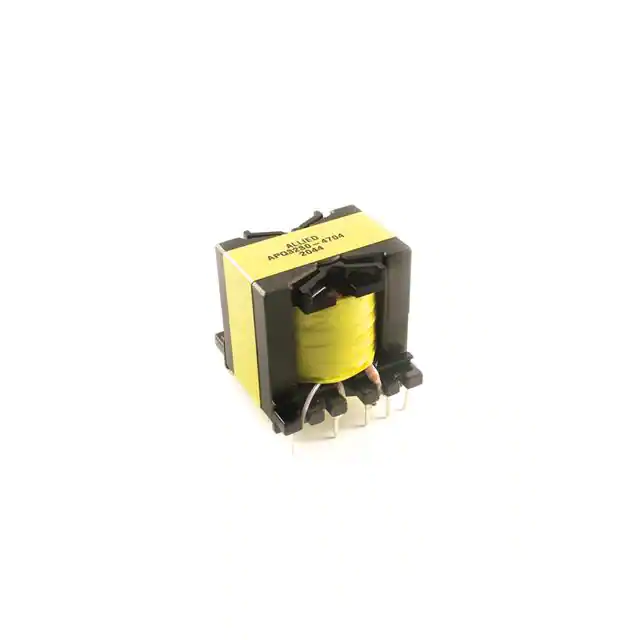

APQ3230-4704	Allied Components International	6,403	1.5MH10% PQ3230 RESONANT TRANS.	Inquiry Now

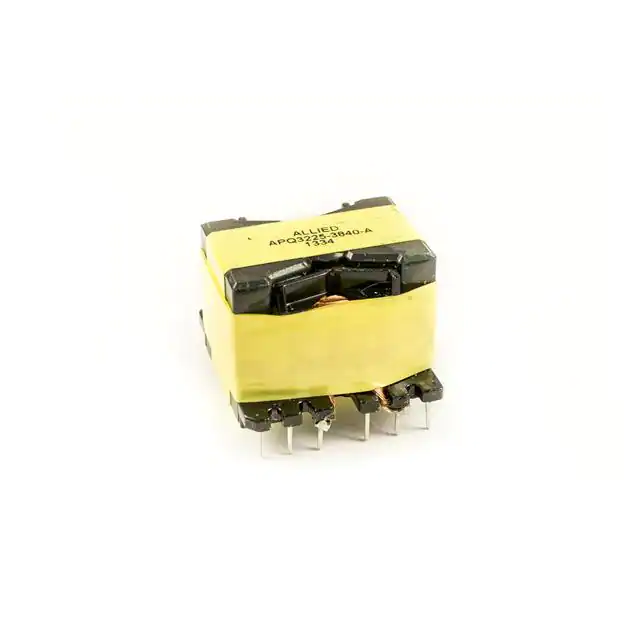

APQ3225-3840-A	Allied Components International	5,183	175UH10% PFC CHOKE	Inquiry Now

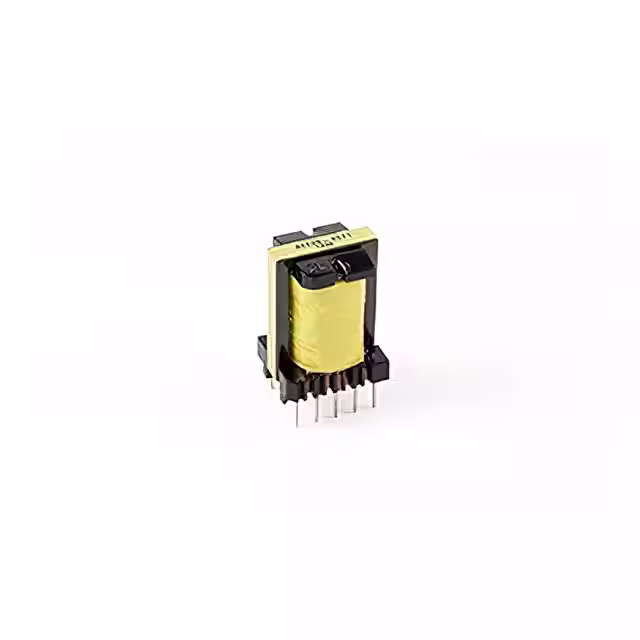

AEE25-4071	Allied Components International	6,708	1.05MH 10% EE25 TRANSFORMER	Inquiry Now

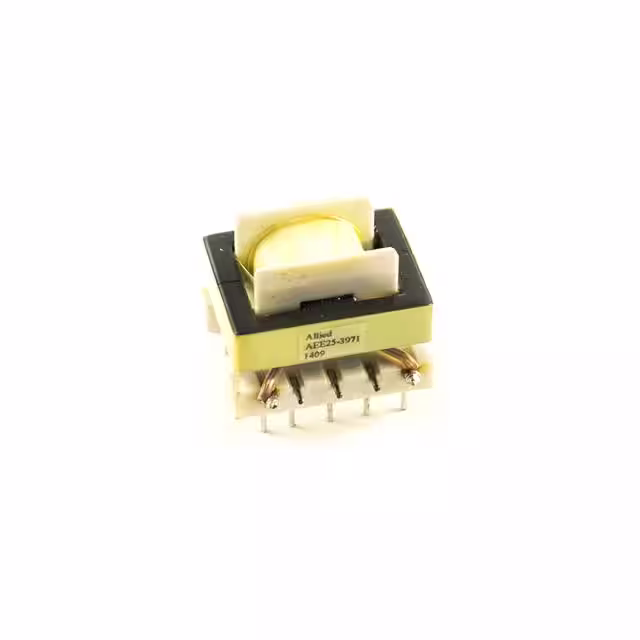

AEE25-3971	Allied Components International	7,992	3.4MH 10% EE25 TRANSFORMER	Inquiry Now

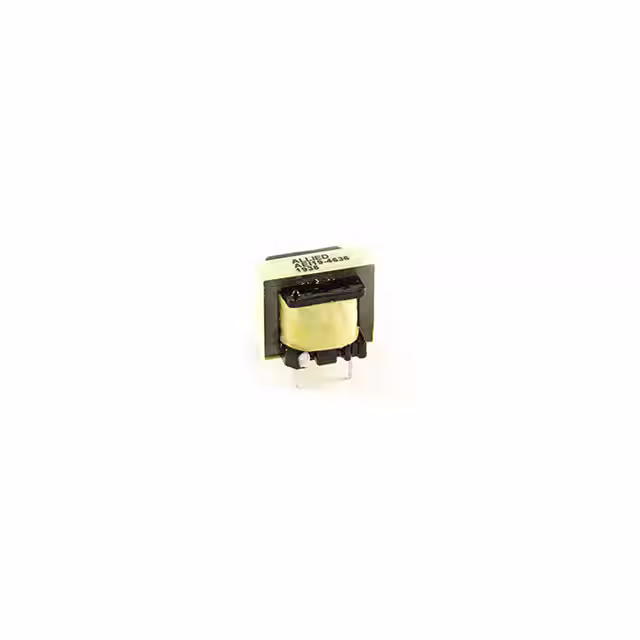

AEI19-4636	Allied Components International	9,835	EI19 300mH Isolation Transformer	Inquiry Now

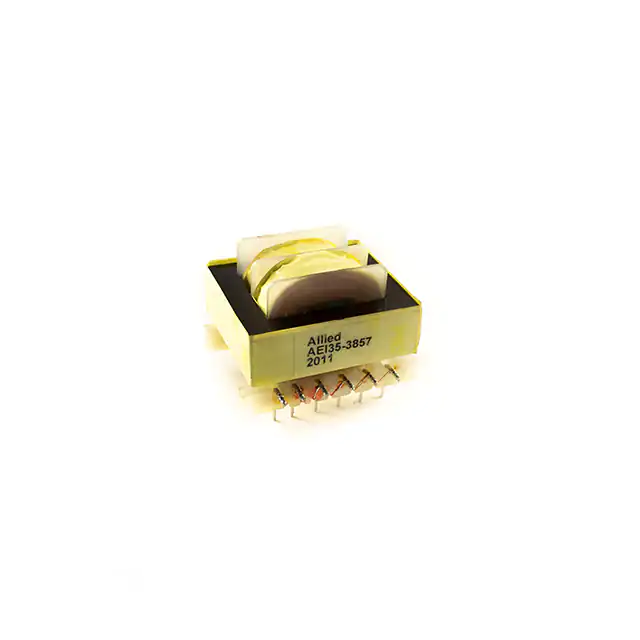

AEI35-3857	Allied Components International	5,201	EI35, MULTI-TAP PRIMARY TRANSFOR	Inquiry Now

Total109Record«Prev12 3 4...6 Next»
